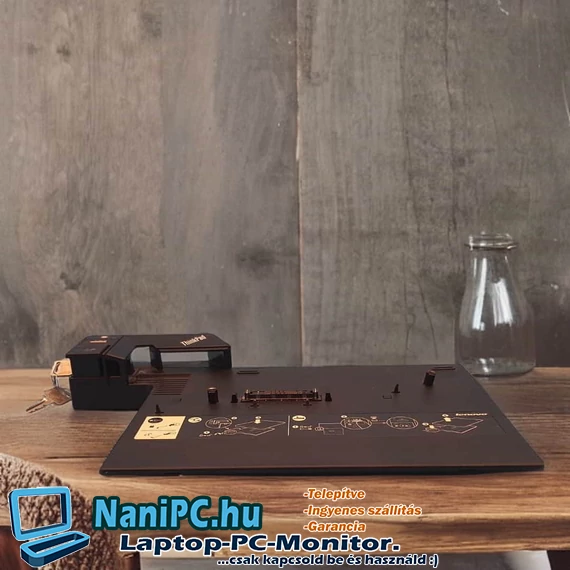

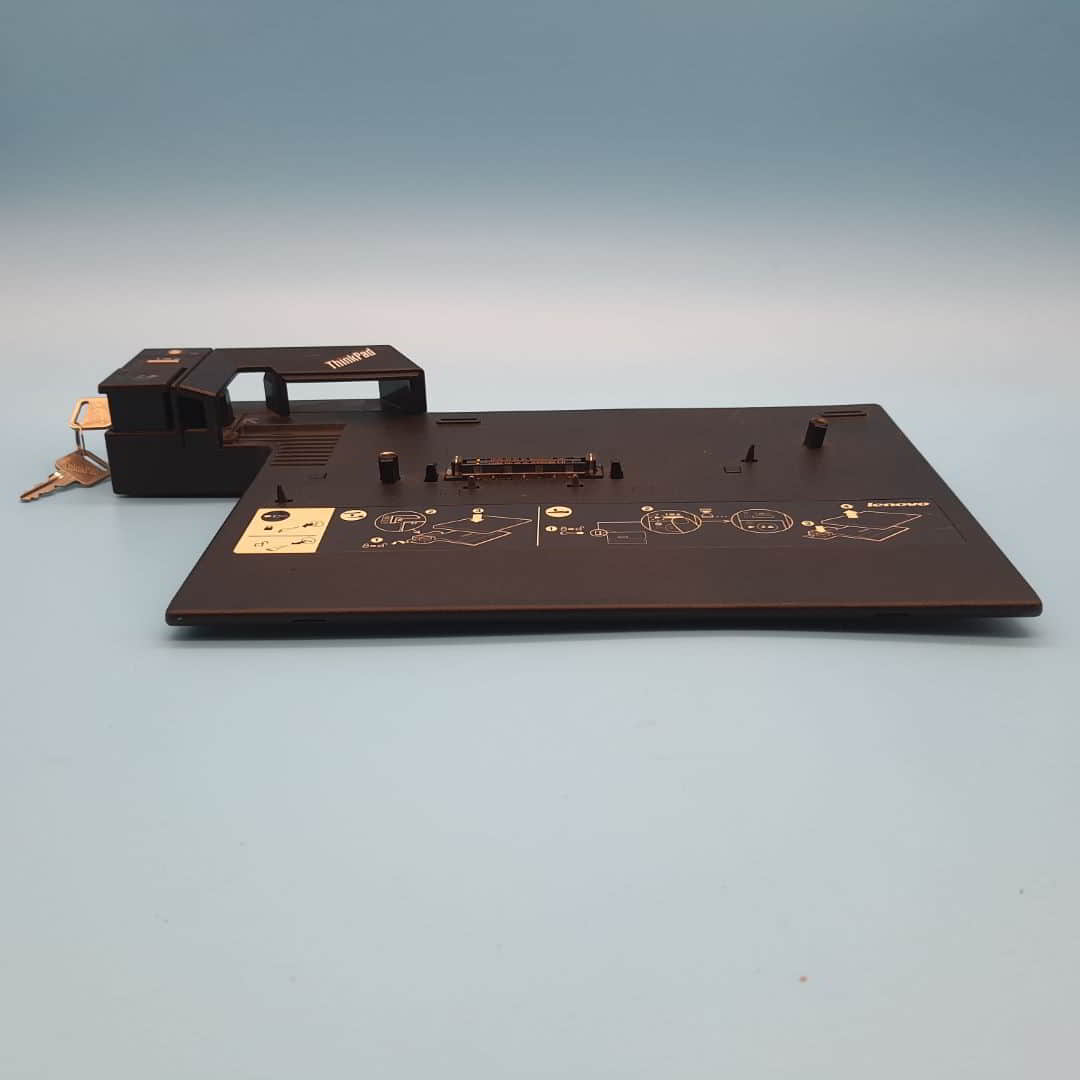

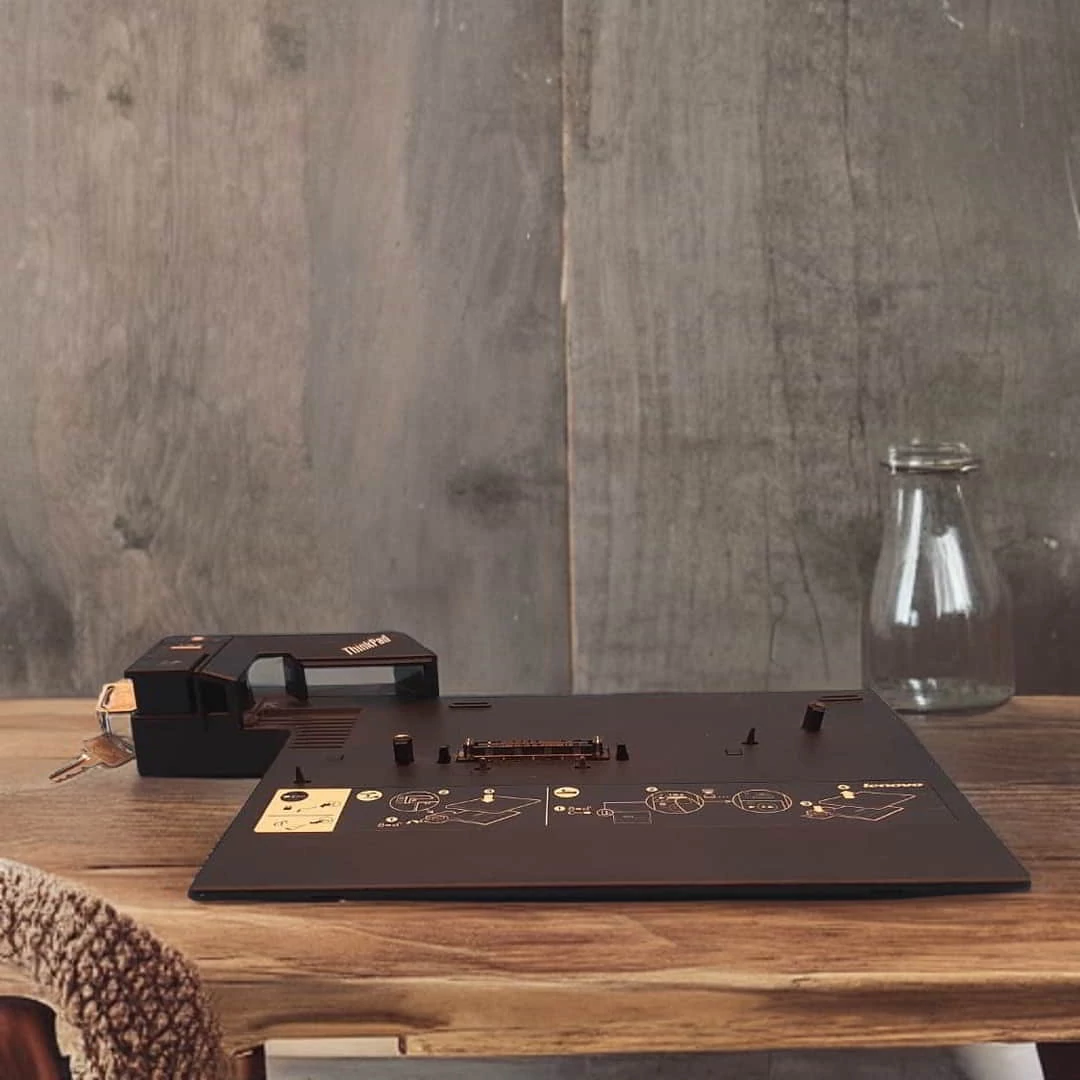

Lenovo ThinkPad Advanced Mini Dokkoló(2504)

Kompatibilitás:

ThinkPad R60* (14" & 15"),

R61 (14"), R61i (14"),

R61 & R61i (15.4" Wide, 15" Standard)*,

R400 (14.1"), R500 (15.4")*,

T60, T60p, T61, T400, T500, W500, Z60m* (15.4"),

Z60t, Z61m* (15.4"), Z61t* (14")

Csatlakozók

4 x Hi-Speed USB - 4 PIN USB Type A
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
1 x microphone - input - mini-phone 3.5mm
1 x headphones - output - mini-phone stereo 3.5 mm
1 x audio - SPDIF
1 x display / video - DVI-Digital - 24 pin digital DVI
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
1 x modem - phone line - RJ-11
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x docking / port replicator
